LIGHTNING Quick Connect Dual Battery Wiring Kit (LP-DBWK8MM-QC)

Product Description
$139.00
'Click 'Add To Cart' for Shipping Calculator'
Maximum quantity available reached.
Sku: LP-DBWK8MM-QC
Product Description

LIGHTNING Quick Connect Dual Battery Wiring Kit



The premium Lightning Dual Battery Wiring Kit is a quick connect system designed for easy installation. This kit includes everything needed to Do It Yourself or alternatively will cut the cost of getting a professional to install it if required.

This purpose built universal kit can be used for a wide range of dual battery systems (under bonnet or in rear of vehicle) and includes multiple high quality components to get the job done right the first time!

Quick Connect Design

The quick connect design uses easy fit anderson style connectors to connect the wiring harness together conveniently. It also provides the ability to add inline components (Isolation and charging devices) to enhance and the dual battery systems performance.

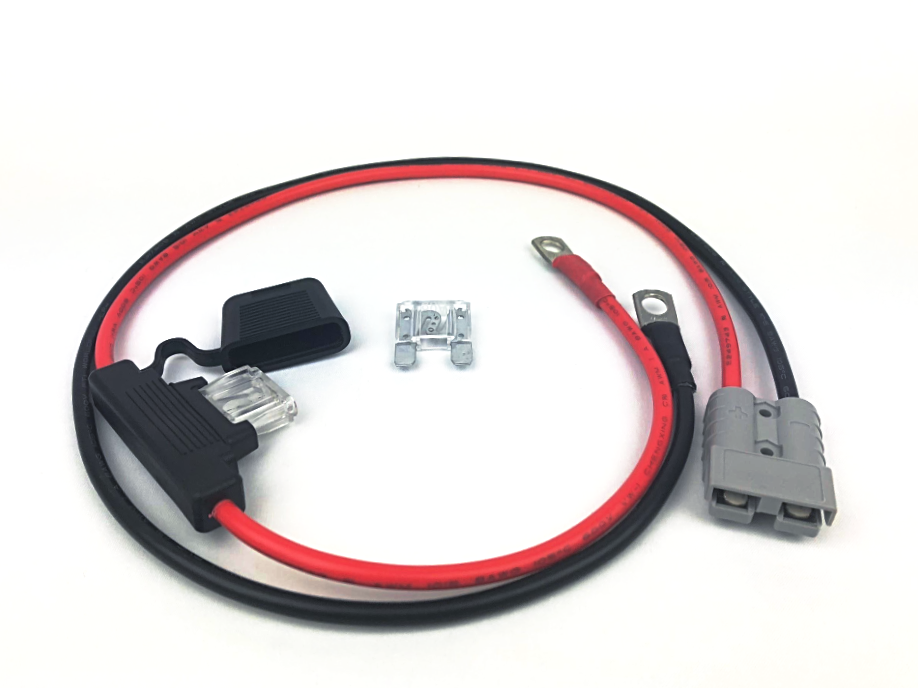

The system is protected with via the purpose built Maxi Fuse Harness which simply connects to the start battery terminals and then to the main harness through the anderson style connector.

The main harness cable comes pre-crimped each end with anderson terminals and 6 meters of heavy duty 8 B&S twin core cable to prevent voltage drop. The wiring kit also comes with spare anderson crimp terminals incase harness shortening is required.

The LIGHTNING Quick Connect wiring kit is ideal for the following purpose:

  • Auxiliary battery Systems (with additional inline devices)
  • Wiring and installing Anderson connectors on the tow bar
  • Wiring to battery systems in the cargo area of the vehicle
  • DC-DC Charger Installation
  • VSR's Installation
  • LIGHTNING Battery Boxes and Power Packs

This Premium Quick Connect kit includes:

6 x meters of  heavy duty 8 B&S Cable - (pre-crimped with Anderson connector terminals​ on each end)
1 x Lightning Maxifuse Cable with 80A Maxifuse pre-installed
1 x 80Amp spare Maxifuse

3 x 50 Amp Anderson style connector shells (1 Shell pre-installed on main cable)
3 x 50 Amp spare Anderson terminals

15 x Black cable ties (300mm)
4 x 8mm yellow ring terminals (for optional installation of a VSR)



Specifications

Main Cable 6M of Twin Sheathed 8B&S (7.71mm2) - With Pre-Crimped Anderson Connectors
Circuit Protection 1 x 50 Amp Maxifuse - Holder Included
Battery Connection Terminals 2 x 10mm Ring Terminals on Maxifuse Cable
High Current Connector 5 x 50 Amp Anderson Connector - Outlets
Spares 2 x 8mm & 2 x 10mm Yellow Ring Terminals (Double Crimp)

1 x  50A Maxifuse (Spare)
Fastening 15 x 300mm UV Enhanced Cable Ties
