LIGHTNING Quick Connect Voltage Sensitive Relay / Dual Battery Isolator (LP-VSR-QC)

Product Description
$129.00
'Click 'Add To Cart' for Shipping Calculator'
Maximum quantity available reached.
Sku: LP-VSR-QC
Product Description

Description:

The Lightning Quick Connect VSR is designed for easy installation via an Anderson style system that connects inline with your Main Battery and Auxiliary Battery. The main advantage of this device is that it does not require any hard wiring when installing which means anyone can install it with ease.

Installation:

  • Simply connect the Sense Plug (Black) to your Main Battery side
  • Then Connect the Aux Plug (Grey) to your Auxiliary Battery side
  • If mounting is required, use the included screws to mount securely



Features:

• Sense Battery Quick Connect Plug

• Auxiliary Battery Quick Connect Plug

• Common Earth system with no hard wiring required

• Surge protection

• Durable silver tipped contacts

• L.E.D indicator

• Weatherproof body (IP65)

• Cut-in: 13.3V

• Cut-out: 12.7V (5 second delay)

50A at 12V for 60 seconds (due to the maximum plug current limit)

50A at 12V continuous load maximum (due to the maximum plug current limit)



Specifications:

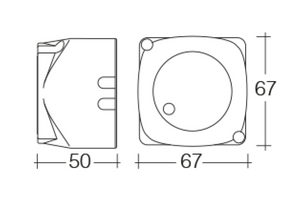

Dimensions:  L - 67mm  W - 67mm  H - 50mm  (plus cable and plugs)



Included:

  • 1 x Lightning Voltage Sensing Relay
  • 4 x Mounting Screws and nuts
  • 1 x Sense Battery Anderson Style Plug (Black)
  • 1 x Auxiliary Battery Anderson Style Plug (Grey)
  • 30cm Heavy duty 6mm twin core cable
